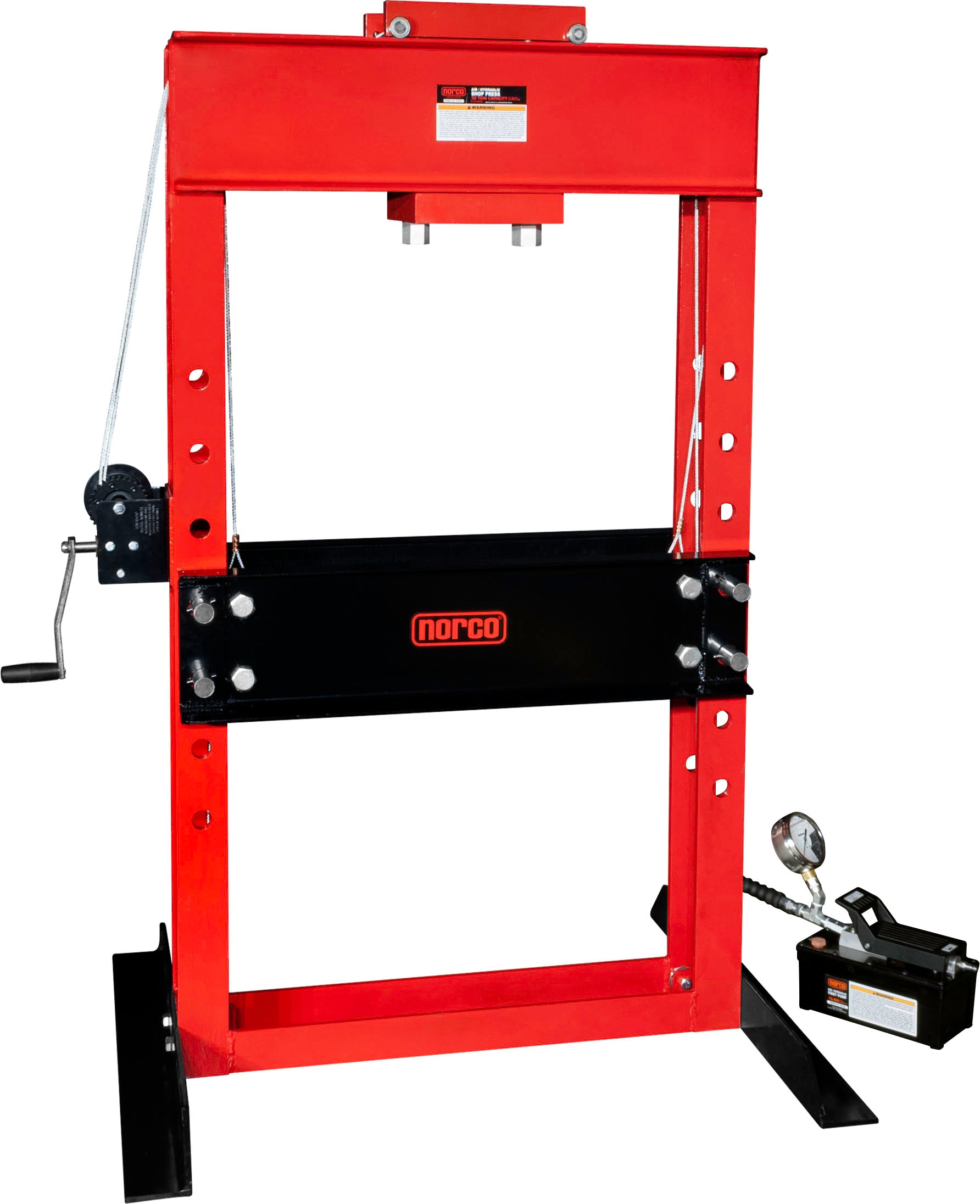

Norco 50-Ton Shop Press with Air/Hydraulic Pump 78057A
Norco 50-Ton Shop Press with Air/Hydraulic Pump 78057A
Couldn't load pickup availability
INTENDED USE:
Heavy duty use in truck garages and industrial work shops. Equipped with
an air/hydraulic foot pump and model 910036A 10’ hose.
FEATURES:
- Welded frame, fully assembled, tested, and ready to put to work.
- Equipped with high speed air/hydraulic foot pump.
- Safety overload system protects power unit.
- Hand operated winch raises and lowers press bed.
- Liquid filled gauge measures ram force in pounds and tons.
- Self-retracting ram is bearing mounted for lateral movement on head channel.
DIMENSIONS:
| Ram Travel | 6.25" |
| Min. Throat Height | 7.5" |
| Max. Throat Height | 32.625" |
| Throat Width | 34.5" |
| Bed Height Adj. | 7 x 5" |
| Between Uprights | 5.625" |
| Between Bed Rails | 7.375" |
| Base Width | 50" |
| Base Depth | 40" |
| Overall Height | 72.75" |
| Shipping Weight | 801 lbs. |
