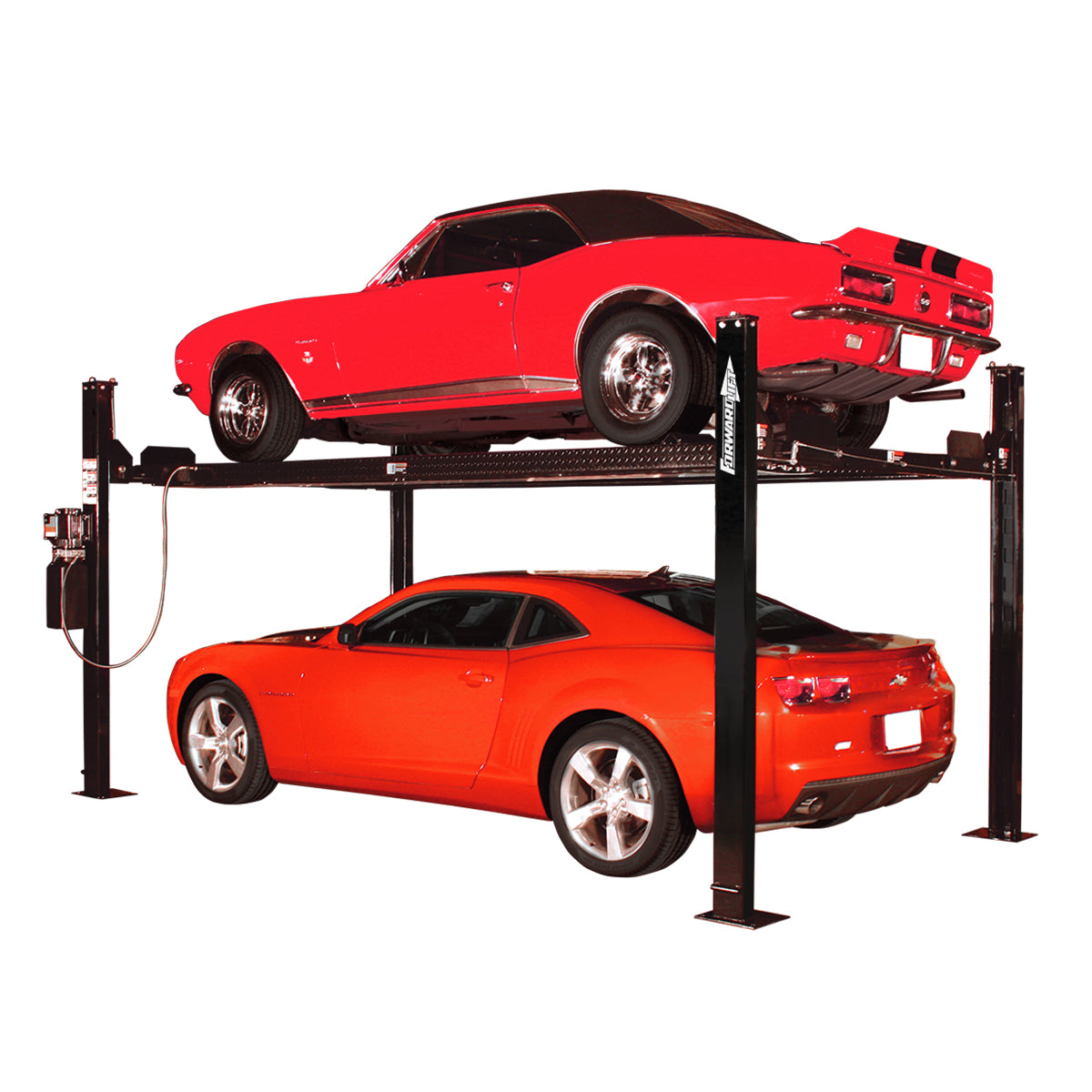

Forward Lift EFP8
Forward Lift EFP8
Couldn't load pickup availability
EFP8 Four-Post Lift Features:
8,000 lbs. capacity four-post lift, perfect for the home enthusiast.
Additional Features:
- ALI/ETL Certified
- Multi-position locks allow runways to be level at any lock position
- Single point lock release
- Includes steel approach ramps
- Perfect for home use
- Powder coat finish
- Includes jack tray
- Includes wheel caster kit
- Includes drip trays
Specifications
| Specifications | EFP8 |
| Capacity | 8,000 lbs. |
| Rise | 72-1/2″ |
| Overall length w/ approach ramps | 207-1/2″ |
| Overall length w/o approach ramps | 175-1/2″ |
| Overall width w/o motor | 103-1/2″ |
| Approach ramp Length | 32″ |
| Runway width | 18-1/2″ |
| Runway length | 169-1/2″ |
| Runway height | 4-1/2″ |
| Height of columns | 81-1/2″ |
| Clearance between columns | 94″ |
| Clearance between runways | 38″ |
| Outside runway to outside runway | 75″ |
| Clearance under runway | 68″ |
| Motor specs | 110VAC, 1HP |
| Specifications subject to change without notice or liability | |
