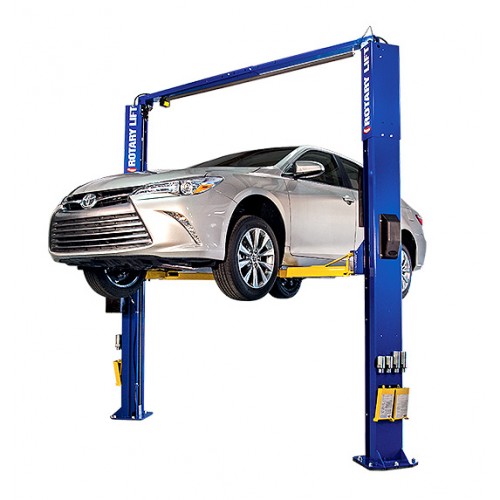

Rotary SPOA10N800 (SPOA10-TRIO-FA) - 10,000 lbs Capacity, 2-Post Asymmetric Lift w/ 3-Stage TRIO^TMArms and Flip Up Adapters.

The world's best selling asymmetrical lift is updated to service a broader range of vehicles - with one innovative arm design!

The patented TRIO^TM Series provides three stages of configurations and flexibility in a two-piece low-profile arm design. With lifting capabilities of 10,000 lbs., Rotary engineers have created a three-stage asymmetrical arm that accommodates a wider range of vehicles.

Patented two-piece, three-stage arm
Vehicle Spotting Speed & Ease
Performance tested to 20,000 lift cycles
True asymmetrical rotated column design
ALI Gold Certified

Model Number	SPOA10N800 (SPOA10-TRIO-FA)
Arm Type	Trio™ 3-Stage Flip Up Design
Adapters	Flip-Up
Capacity	10,000 lbs.
Rise	78"
Overall Height	11' 8 1/2"
Overall Width	11' 5 3/8"
Drive-Thru	95 1/4"
Front Arm Min/Max	21 3/4" - 43 1/2"
Rear Arm Min/Max	37" - 61"
Min. Adapter Height	4 3/4"
Max. Adapter Height	N/A
Min. Bay Size	12'x24'
Ceiling Height Min.	12'
Motor	2 HP
Voltage	208v-230v
Time of Full Rise/Decent	45 secs./40 secs.
